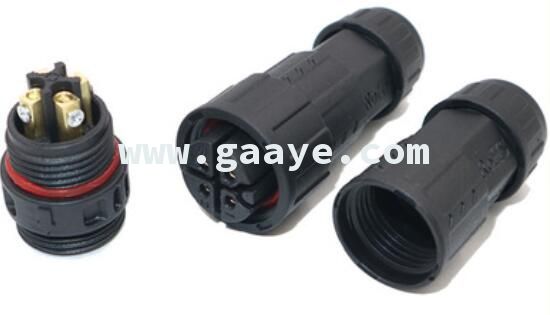

M19 4pin Assembled Waterproof Electrical Cable Connector Plug Socket Connectors

Product Tags : Lamp accessories connector

Product Attributes :

M19 4pin Assembled Waterproof Electrical Cable Connector Plug Sock

Product Description

Specifications:

Pin Number: 2/3/4 pins

Wiring Mode: Soldering Type

Max.Diameter: 11mm

Shell Material: Nylon(260 °C temperature, V-0 flame retardant)

3m waterproof connectors,1 pin waterproof connector,waterproof 4 wire connector

5 pin waterproof electrical connectors,7 pin waterproof connector

Connector contacts and coating: Copper 2.3 / 1.0mm, Gold-plated

Waterproof rubber gasket: Silicone

Working temperature: -25 °C ~ 105 °C

Storage temperature: -25 °C ~ 85 °C

Atmospheric pressure: 86 ~ 106 KPa

Relative humidity: ≤ 90%

Waterproof grade: IP68

Rated current: 20A

Rated voltage: 500V

Withstand voltage: 1500V

Contact resistance: < 1MΩ

Insulation resistance: > 2000MΩ

Weight: 35g
