Solder Seal Wire Connectors, Heat Shrink Butt Connectors Terminals Electrical Waterproof Insulated Marine Auto copper
product name:heat shrink connectors with solder,heat shrink connectors marine,heat shrink connector crimping tool,heat shrink connector torch,heat shrink connector gun,heat shrink adhesive connectors
Technical Specifications:
Shrinkage ratio 2:1
Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside
Color coded connector tubing
Heat activated waterproof adhesive
Low temperature solder sleeve
Minimum shrink temperature: 80°C
Minimum temperature for solder to melt: 138°C
Features:
An easy one step connection of wires.
Soldered, insulated and sealed can be ideal.
Use in marine and automobile applications.
Melt adhesive in inside solder and seal and with advanced waterproof function.
Polyolefin heat shrink butt connectors improved pullout strength.
Provide seal, strain relief, cable check and insulation.

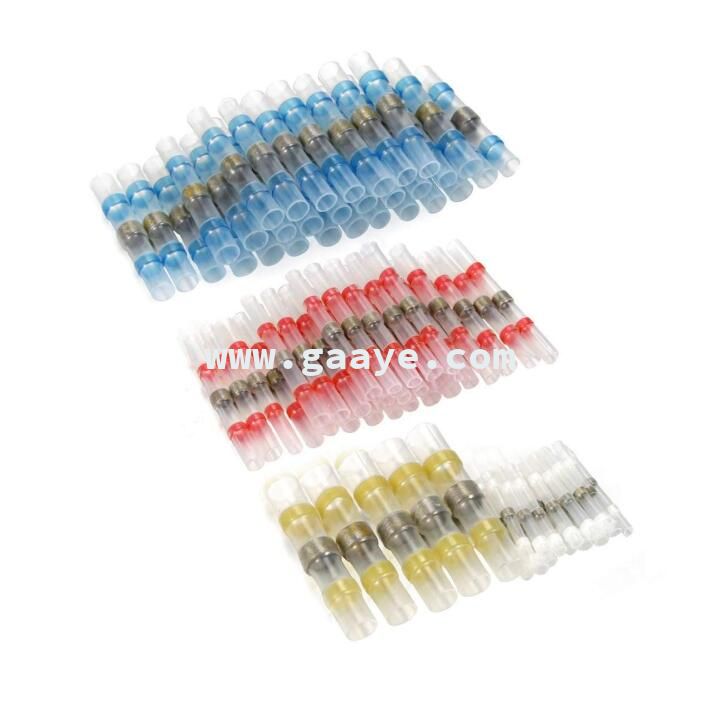

Sizes and Quantity:
AWG 12-10 Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0 - 6.0 mm² : 10pcs
AWG 16-14 Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5 - 2.5 mm² : 40pcs
AWG 22-18 Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5 -1.0 mm² : 40pcs
AWG 26-24 White Connectors: Diameter 1.7 mm, Cable cross-section 0.25 - 0.34 mm² : 20pcs
